MY-B003H
The three-category fully automatic blood analyzer is a device used to analyze human blood samples. It can automatically perform measurements and analysis of three basic blood parameters: white blood cell count, red blood cell count, and hemoglobin level. This instrument is typically utilized in medical laboratories, hospitals, clinics, and research institutions for assessing the blood condition of patients.
Product Advantage：
Fully automated operation
Rapid analysis
Accurate measurement
Measurement of multiple parameters
Sample processing capability
Data management functionality
Product Uses：
Medical laboratories, hospitals, clinics, and research institutions for assessing the blood condition of patients.
Product Operate Guide：
The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.
Auxiliary personnel
Turn on the power switch
Check whether the air pressure is sufficient (must reach 0.6Mpa)
Click the host to start, and check whether each action is working properly
Check and clean up each box room
Put the bag, load the material, put the material box
Click the host to start
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10)
During the production process, check the product sealing and pumping conditions continuously
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand
SPECIFICATIONS
Parameters：

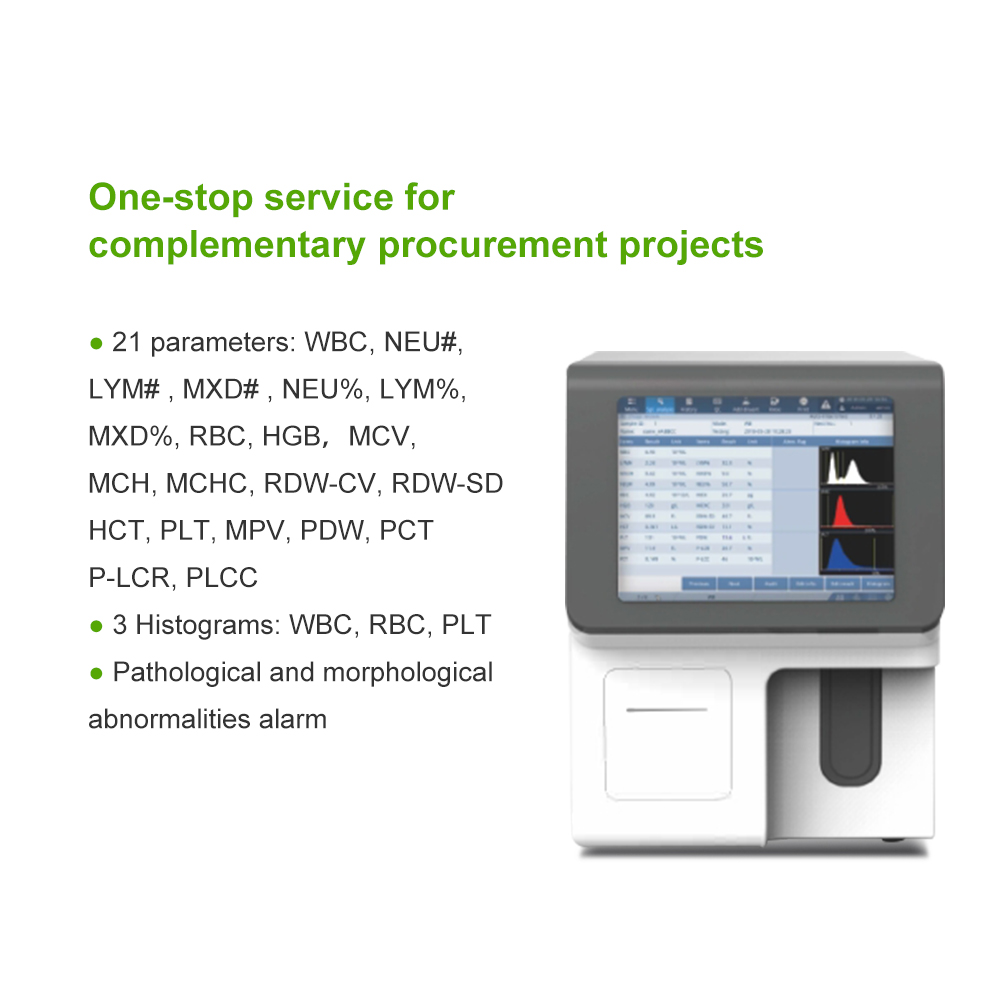

21 parameters: WBC, NEU#, LYM# , MXD# , NEU%, LYM%, MXD%, RBC, HGB，MCV,
MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, PLCC
3 Histograms: WBC, RBC, PLT
Pathological and morphological abnormalities alarm
Principles：
Impedance method for WBC, RBC and PLT counting
Cyanide free reagent for hemoglobin test
Throughput：70 test/hour
Display：10.4 inch TFT Touch Screen
Sampling Mode：Manual Mode
Storage Capacity：More than 500,000 results
Sample Volume:Whole blood mode 6uL, Prediluted mode 20uL
Reagent Type：One diluent and one lyse
Intertace：
LAN port RJ45, 4 USB port
LIS/HIS：
Bi-directional
Weight：
25kg
Dimension：
430mmX 295mmx398mm (DxWxH)
Power consumption：
110VA
Technical Specifications
Principle:
Electrical impedance for counting and SFT method for hemoglobin
Parameters: WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, and 3 Histograms for WBC, RBC and PLT
Throughput:
Up to 60 samples per hour
Sample Volume:
Whole blood: 9μl, Pre-dilution blood: 20μl
Aperture Diameter:
WBC: 80μm RBC: 50μm
Alarms:
Error messages
Display:
10.4’’ large color LCD
Storage:
10,000 sample results including histograms, available to increase storage by expanding memory card
Printout:
Built-in thermal printer, various print-out formats; external printer optional
Input:
Mouse and keyboard, connected by USB ports
Interface:
USB x3, RS232 x2
Working Conditions:
Temperature: 15-35℃, Humidity: ≤80%
Atmospheric pressure: 70Kpa-106Kpa
Power supply: AC220V±22V, 50±1Hz
Dimension:
325x370x545mm(L*W*H)
Weight:
16Kg(net), 23Kg(gross)
